Product Overview

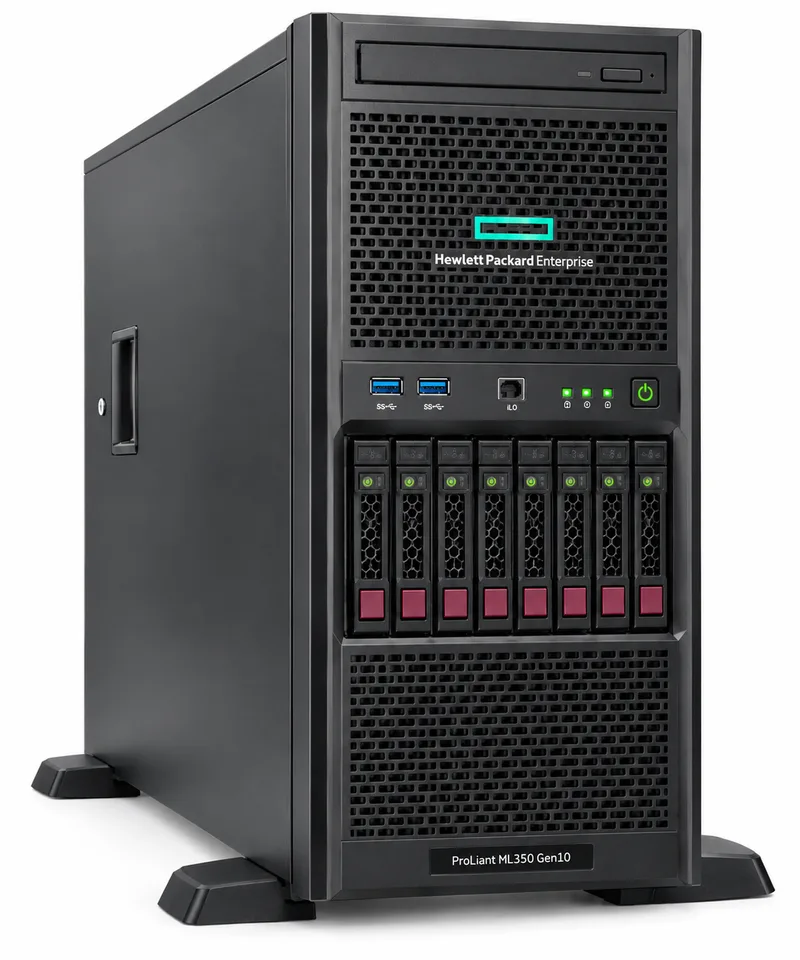

The HPE ProLiant ML350 Gen10 P04674-425 is a 4U tower server configured with an Intel Xeon Silver 4110 processor, 16GB DDR4 ECC Registered memory, HPE Smart Array E208i-a storage controller, 8 × SFF hot-plug drive bays, and an 800W Flex Slot power supply. HPE identifies this SKU as the ML350 Gen10 4110 8SFF EU/UK Server/TV.
Unlike the CTO servers we've been listing, P04674-425 is a preconfigured server SKU, so the CPU, RAM, RAID controller, drive-bay configuration, and power supply can be described specifically. HPE documentation and product data identify the configuration as 1 × Xeon Silver 4110, 16GB RDIMM, E208i-a, 8SFF, no HDD, and 1 × 800W Flex Slot PSU.
Processor
The server comes with:
Intel Xeon Silver 4110
The Xeon Silver 4110 is an Intel Xeon Scalable processor with:
- 8 CPU cores
- 16 threads with Hyper-Threading
- 2.1 GHz base frequency
- Up to approximately 3.0 GHz Turbo frequency
- 11MB L3 cache
- 85W TDP
- Intel Xeon Scalable architecture
P04674-425 specifically includes one Xeon Silver 4110 processor. The ML350 Gen10 platform is capable of supporting up to two processors, allowing a second CPU to be added when additional processing capacity is required.
Processor: Intel Xeon Silver 4110
Cores: 8
Frequency: 2.1 GHz
Installed: 1 CPU
Maximum: 2 CPUs
Memory
The P04674-425 configuration includes:
16GB DDR4 ECC Registered Memory
The standard configuration contains 1 × 16GB HPE DDR4 SmartMemory RDIMM.
The ML350 Gen10 platform provides 24 DIMM slots, giving substantial memory expansion capability. HPE's documentation lists support for both DDR4 RDIMM and LRDIMM technologies, depending on configuration.
The installed memory is:
1 × 16GB DDR4-2666 ECC Registered DIMM
The actual operating speed is determined by the installed processor and memory configuration. The Xeon Silver 4110 operates memory at the processor-supported speed.
Memory: 16GB
Configuration: 1 × 16GB
Type: DDR4 ECC RDIMM
Slots: 24 DIMM
Storage – 8SFF Hot Plug
One of the defining features of P04674-425 is its:
8 × SFF Hot-Plug Drive Bays
SFF = Small Form Factor, referring to 2.5-inch drives.
The server supports up to eight 2.5-inch hot-plug SAS/SATA drives in the standard 8SFF cage.
The base configuration ships with:
No Hard Drives Installed
This means you can configure the server with suitable SAS HDDs, SATA HDDs, SAS SSDs, or SATA SSDs according to the customer's requirements.
Drive Bays: 8 × SFF Hot Plug
Drive Size: 2.5-inch
Hard Drives: None Included
Storage Controller – HPE Smart Array E208i-a
The P04674-425 comes with the:
HPE Smart Array E208i-a SR Gen10 Controller
This is a hardware RAID/storage controller designed for internal SAS storage.
The E208i-a provides:
- 12Gb/s SAS connectivity
- 6Gb/s SATA support
- Internal drive connectivity
- RAID functionality
- HPE Smart Storage management
- SmartPath support
HPE's product data identifies the E208i-a as the storage controller supplied with this configuration.
Supported RAID functionality includes configurations such as:
- RAID 0
- RAID 1
- RAID 5
- RAID 10
The exact RAID level available depends on the installed drives and configuration.
Storage Controller: HPE Smart Array E208i-a SR Gen10
Interface: 12Gb SAS / 6Gb SATA
Storage Expansion
The ML350 Gen10 platform is designed for significant storage expansion.
The standard P04674-425 configuration provides:
8 × 2.5-inch SFF hot-plug bays
The ML350 Gen10 platform can support additional storage cages and alternative storage configurations depending on the chassis configuration and installed options.
This makes the server suitable for customers who need:
- High-speed SAS storage
- SSD storage
- Database storage
- Virtualization storage
- Backup storage
- Business application storage
Network Connectivity
The server includes:
HPE Ethernet 1Gb 4-Port 369i Adapter
This provides:
4 × 1GbE Ethernet ports
The embedded network controller provides standard network connectivity without requiring an additional PCIe NIC.
Additional network adapters can also be installed through the server's PCIe expansion slots.
Network: HPE Ethernet 1Gb 4-Port 369i
Ports: 4 × 1GbE
PCIe Expansion
The ML350 Gen10 provides multiple PCIe expansion options.
The P04674-425 configuration provides four standard PCIe expansion slots, with the exact slot configuration depending on the installed riser and processor configuration. HPE's product data lists the standard expansion arrangement as:
- PCIe x16
- PCIe x8
- PCIe x16
- PCIe x8
Additional expansion capability can be available with the appropriate second-processor and riser configuration.
PCIe slots can be used for:
- Additional network adapters
- Fibre Channel HBAs
- Additional RAID controllers
- Storage adapters
- GPUs
- Other PCIe expansion cards
HPE iLO 5 Management
The ML350 Gen10 includes HPE Integrated Lights-Out 5 (iLO 5) with Intelligent Provisioning.
iLO provides remote management functionality including:
- Remote server monitoring
- Hardware health monitoring
- Remote console access
- Firmware management
- Remote troubleshooting
- Server configuration
- Operating-system deployment
The standard configuration includes iLO Standard with Intelligent Provisioning. Advanced iLO capabilities can be enabled with an appropriate license.
Power Supply
The P04674-425 configuration includes:
1 × 800W HPE Flex Slot Power Supply
The 800W Flex Slot power supply provides the power required for the configured server and its installed components. HPE identifies the 800W power supply as part of the P04674-425 configuration.
Additional power supply configurations can be used depending on the system's expansion requirements.
Power Supply: 1 × 800W Flex Slot
Redundant Power: Optional with additional compatible PSU
Cooling
The ML350 Gen10 uses an active cooling architecture designed to accommodate its processor, memory, storage, and PCIe expansion options.
The P04674-425 solution configuration is also associated with the HPE ML350 Gen10 Redundant Fan Cage Kit – 874572-B21 when configured as the documented solution bundle. However, you should only list the redundant fan cage as included if it is physically present in your refurbished unit.
Tower Form Factor
The ML350 Gen10 is a 4U tower server.
Its tower chassis is designed for offices, server rooms, branch locations, and environments where a tower server is preferred.
The platform can also be converted for rack installation using the appropriate HPE tower-to-rack conversion hardware.
Form Factor: 4U Tower
Rack Conversion: Supported with optional kit
Optical Drive
The P04674-425 configuration does not include an optical drive as standard.
The ML350 Gen10 supports optional optical-drive configurations where required.
Optical Drive: Not Included / Optional
Graphics
The ML350 Gen10 uses an embedded server graphics controller for basic local video output.
The platform provides integrated server graphics suitable for management and console use, while supported PCIe graphics/GPU options can be added depending on the configuration.
Server Management & Security
The ML350 Gen10 provides HPE enterprise management capabilities through:
- HPE iLO 5
- Intelligent Provisioning
- HPE OneView support
- Remote management
- Hardware monitoring
- Firmware management
These features make the server suitable for environments where remote administration and centralized server management are important.
Ideal Applications
The HPE ProLiant ML350 Gen10 P04674-425 is suitable for:
- Small and medium-sized businesses
- File servers
- Application servers
- Database servers
- Backup servers
- Virtualization
- Business applications
- Storage workloads
- Branch-office infrastructure
- Remote-office environments
- General-purpose enterprise workloads
