Micron · DDR5 Memory

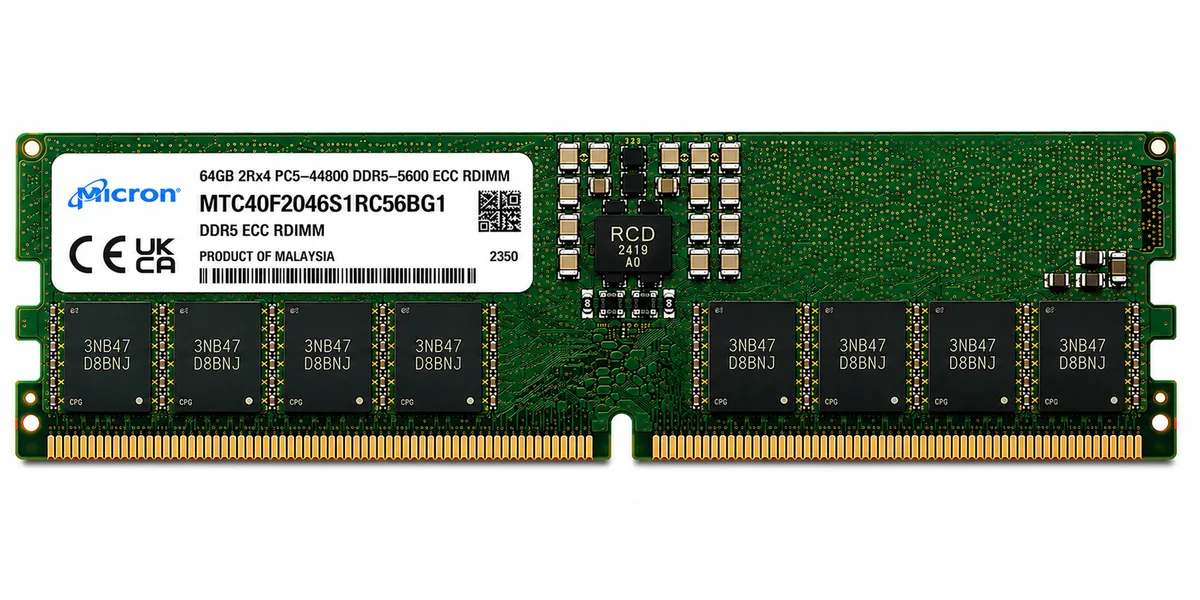

Micron MTC40F2046S1RC56BG1 64GB DDR5-5600 ECC RDIMM Server Memory
- Part number
- MTC40F2046S1RC56BG1
- Condition
- Refurbished
- Warranty
- 1 year
- Bench-tested 48 hrs
- 1-year warranty
- 30-day returns
The Micron MTC40F2046S1RC56BG1 is a 64GB DDR5-5600 ECC Registered DIMM (RDIMM) designed for enterprise servers and data-center platforms. Featuring 5600 MT/s, 2Rx4 dual-rank architecture, CL46, 1.1V, and a 288-pin form factor, it delivers…
| Capacity | 64GB |
|---|---|
| Memory type | DDR5 SDRAM |
| Module type | RDIMM |
| Speed | 5600 MT/s |
| Rank | 2Rx4 / Dual Rank |
| Form factor | RDIMM |
| Capacity | 64GB |
|---|---|
| Memory type | DDR5 SDRAM |
| Module type | RDIMM |
| Speed | 5600 MT/s |
| Rank | 2Rx4 / Dual Rank |
| Error checking | Yes |
| Pin count | 288-pin |
| Application | Enterprise Server / Data Center |
| Bandwidth | PC5-44800 |
|---|---|
| Data width | x80 |
| CAS latency | CL46 |
| Voltage | 1.1V |
| Operating temperature | 0°C to +95°C |
| Form factor | RDIMM |
|---|---|
| Brand | Micron |
| Memory Speed | 5600 |
48-hour burn-in
CPU, memory and drives run under load for two days. SMART data, POST logs and thermals are archived against the serial number.
Firmware and configuration
BIOS, management controller and storage controller are brought to the current stable release, and RAID is pre-configured on request.
1-year Horizon warranty
Parts and labour from the delivery date, with advance replacement on stocked SKUs so you are not waiting on the inbound unit.
30-day returns
Full refund, no restocking fee. Return shipping is prepaid by us on dead-on-arrival units. An RMA number is required.
The Micron MTC40F2046S1RC56BG1 is a 64GB DDR5-5600 ECC Registered DIMM (RDIMM) designed for modern enterprise servers, data centers, and high-performance computing platforms. It combines 64GB high-density capacity, DDR5-5600 speed, ECC protection, registered architecture, and dual-rank x4 organization to provide high bandwidth, reliability, and scalability for demanding server workloads. Micron's specifications identify this exact module as 64GB, DDR5-5600, x80, CL46, 1.1V, ECC RDIMM.
DDR5-5600 High-Speed Performance
The MTC40F2046S1RC56BG1 operates at 5600 MT/s, providing a theoretical module bandwidth of approximately 44.8 GB/s. This makes it well suited for modern server processors and workloads that require high memory throughput.
Micron specifies 5600 MT/s, CL46, and 1.1V for this exact part number.
Actual operating speed can vary depending on the processor, BIOS configuration, DIMM population, and server platform. For example, Dell's documented PowerEdge R760 configurations used this exact 64GB module at 5600 MT/s but configured the memory at 4800 MT/s.
64GB High-Density Server Memory
With 64GB capacity per module, the MTC40F2046S1RC56BG1 provides substantial memory capacity while allowing compatible servers to scale to large total memory configurations.
It is suitable for:
- Enterprise servers
- Data-center infrastructure
- Server virtualization
- Cloud computing
- Database servers
- AI and machine-learning workloads
- Data analytics
- High-performance computing
- Virtual desktop infrastructure
- Enterprise applications
- Large-scale application hosting
ECC Registered DIMM Architecture
The MTC40F2046S1RC56BG1 is an ECC Registered DIMM (RDIMM). ECC technology is designed to detect and correct certain types of memory errors, helping improve data integrity and system stability in professional server environments.
The registered architecture is intended for compatible enterprise server platforms and should not be confused with desktop UDIMM or laptop SO-DIMM memory.
Micron officially categorizes this exact MPN as an RDIMM.
2Rx4 Dual-Rank Configuration
The exact MTC40F2046S1RC56BG1 uses a 2Rx4 dual-rank organization. Micron's technical documentation identifies the module as a 64GB x80 ECC dual-rank 288-pin DDR5 RDIMM, using 16Gb x4 DRAM devices.
This configuration should be considered when verifying server compatibility and planning DIMM population.
1.1V DDR5 Technology
The module operates at 1.1V, providing the efficiency characteristics of modern DDR5 server memory. DDR5-5600 also offers substantially higher bandwidth than comparable DDR4 server-memory generations.
288-Pin RDIMM Form Factor
The MTC40F2046S1RC56BG1 uses the standard 288-pin DDR5 RDIMM form factor. Micron's documentation identifies it as a 288-pin DDR5 RDIMM, while major distributors also list the exact MPN as a 64GB RDIMM.
Enterprise Applications
The combination of 64GB capacity, DDR5-5600 speed, ECC protection, registered architecture, and 2Rx4 dual-rank organization makes this module suitable for demanding enterprise environments.
Virtualization:
Provides substantial memory capacity for multiple virtual machines and memory-intensive applications.
Database Servers:
The 64GB density and ECC functionality make it suitable for large database workloads.
Cloud & Data Centers:
Designed for compatible server platforms requiring high-density DDR5 RDIMM memory.
AI & Data Analytics:
High memory bandwidth and capacity can benefit large datasets and memory-intensive processing.
High-Performance Computing:
Suitable for compatible HPC platforms requiring high-capacity, reliable server memory.
Enterprise Server Usage
This exact module has been used in documented Dell PowerEdge R760 configurations. SPEC records show systems populated with 8 × or 16 × 64GB MTC40F2046S1RC56BG1 modules, demonstrating its use in modern enterprise server environments.
Compatibility
Before installing the MTC40F2046S1RC56BG1, verify that the target server supports:
- DDR5 ECC RDIMM
- 64GB DIMMs
- DDR5-5600
- 2Rx4 dual-rank memory
- 288-pin DDR5 RDIMMs
- 1.1V DDR5 memory
- Required DIMM population configuration
- Compatible processor and BIOS
- Server maximum supported memory capacity
The module can operate at a lower speed when required by the processor or server configuration.
Technical Specifications
